Docol PHS 1500M Hot Formed Steel (PHS)

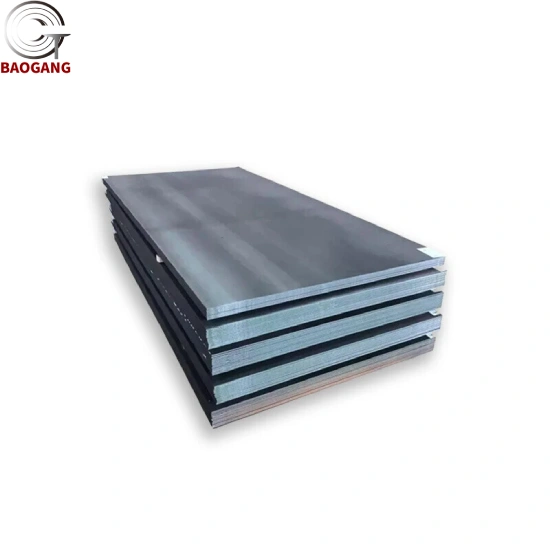

Docol PHS 1500M Hot Formed Steel (PHS) - Image 3

Docol PHS 1500M is a steel that can be supplied in the form of hot rolled steel and cold rolled steel. Docol PHS1500M hot-formed steel is widely developed for parts made by direct or indirect hot forming in the automotive industry.



+86 17625734752



baogang@bgstco.com

Product Parameters

Hot-formed steel is a type of steel that changes its structure and properties through thermo-mechanical processing (such as rolling, forging, extrusion, etc.) under high temperature. It has excellent properties, workability and corrosion resistance. Because hot-formed steel is processed at high temperatures, its grain size becomes larger and the deformation ability of the steel is also enhanced. As a result, it has excellent plasticity and can easily realize complex deformation processes. During the processing of hot-formed steel at high temperatures, due to the strong oxide film protection on the surface of the steel, its surface quality is better, which facilitates subsequent processing and surface treatment. Applications of Docol PHS 1500M hot-formed steel include safety parts such as door anti-collision beams, bumper systems, and B- pillar reinforcements.

Mechanical Properties

Steel Grade	Standard	Status	Test Direction	Yield Strength Rp0.2 (MPa)	Tensile Strength Rm (MPa)	Extension Rate A80( %)	Extension Rate A5( %)
Docol PHS FH 1500	SSAB	Full hard	T	960	1060	4	–
Docol PHS CR1500	SSAB	Fire after delivery	T	340	480	28	–
Docol PHS CR1500	SSAB	Hot printing	T	1200	1590	6	–
Docol PHS HR1500	SSAB	hot rolling	T	570	715	20	22
Docol PHS HR1500 A	SSAB	Annealing	T	350	530	25	33
Docol PHS HR1500	SSAB	Hot printing	T	1200	1590	6	7

Chemical Composition

Brand	C (max %)	Si (max %)	Mn(max %)	P (max %)	S(max %)	Cr(max %)	B(max %)
Docol PHS CR1500	0.20-0.25	0.15-0.35	1.00-1.35	0.025	0.005	0.35	0.0020-0.0050
Docol PHS HR1500	0.20-0.25	0.15-0.35	1.00-1.35	0.025	0.005	0.35	0.0020-0.0050

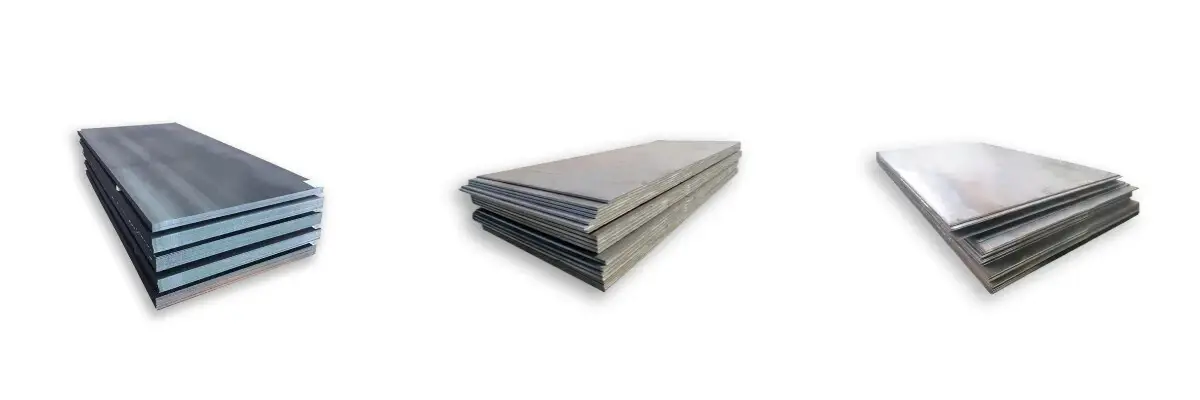

Product Display

Application

Package

← Docol 420LA High Strength Low Alloy Steel (HSLA) Docol 500DP Dual Phase Steel (DP) →

Factory Display

FAQ

Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.

Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.

Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
