DC01/DC02/DC03/DC04 Cold Rolled Steel Plate
DC01, DC02, DC03, DC04 are steel grades of European standard DIN EN 10130, 10209 and DIN 1623, which are specified cold rolled steel. The grades are classified according to the maximum permissible yield strength.
Product Parameters
| DC01/DC02/DC03/DC04 Cold Rolled Steel Plate |
| DC steel plates have high tensile strength and elongation, giving them good processing properties during the manufacturing process and is easy to bend, stamp, form and weld. This makes DC steel plates widely used in the manufacturing of automotive parts, home appliances, construction and other parts that require high strength and precision. DC steel plates’ s low carbon content gives them excellent weldability and machinability. They can be processed through various welding and cutting processes, such as arc welding, gas shielded welding, laser cutting, etc., to meet the needs of material processing performance in different fields. Lastly, the carbon emission is low and meets the requirements of environmental protection and sustainable development. |
| Product Parameters | |
| Product Name | DC01/DC02/DC03/DC04 Cold Rolled Steel Plate |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
| Chemical Composition |
| C: max. 0,08 % |
| Mn: max. 0,40 % |
| P: max. 0,03 % |
| S: max. 0,03 % |
| Mechanical Properties | ||||
| Steel Grade | Yield Strength (MPa) min | Tensile Strength (MPa) min | Elongation | Old Description |
| % min | ||||
| DC01 | ≤280 | 270-410 | 28 | St 12-03 |
| DC03 | ≤240 | 270-370 | 34 | St 13-03 |
| DC04 | ≤210 | 270-350 | 38 | St 14-03 |
| DC05 | ≤180 | 270-330 | 40 | St 15-03 |
| DC06 | ≤170 | 270-330 | 41 | – |
| DC07 | ≤150 | 250-310 | 44 | – |
| Scope of Application |
| DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling. |
| DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable. |
| DC04 is suitable for high deformation requirements. |
| DC05 is a thermal forming grade, it is suitable for higher forming requirements. |
| DC06 is a grade for special deep drawing, suitable for the higher deformation requirements. |
| DC07, this superior deep drawing quality is suitable for highest deformation requirements. |

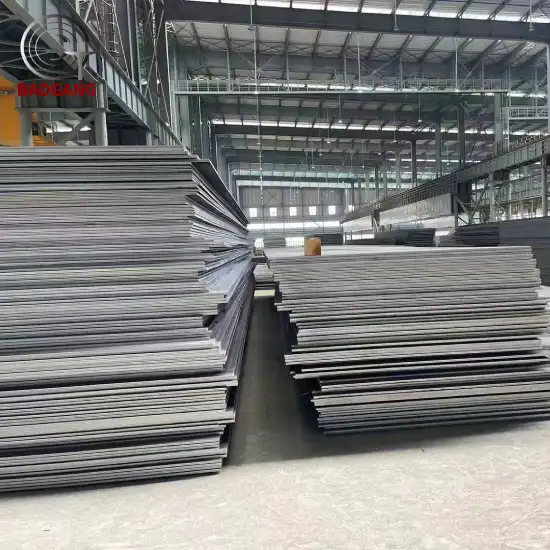

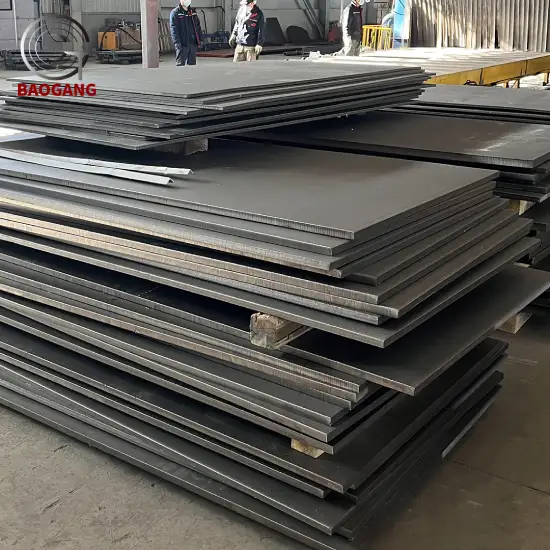

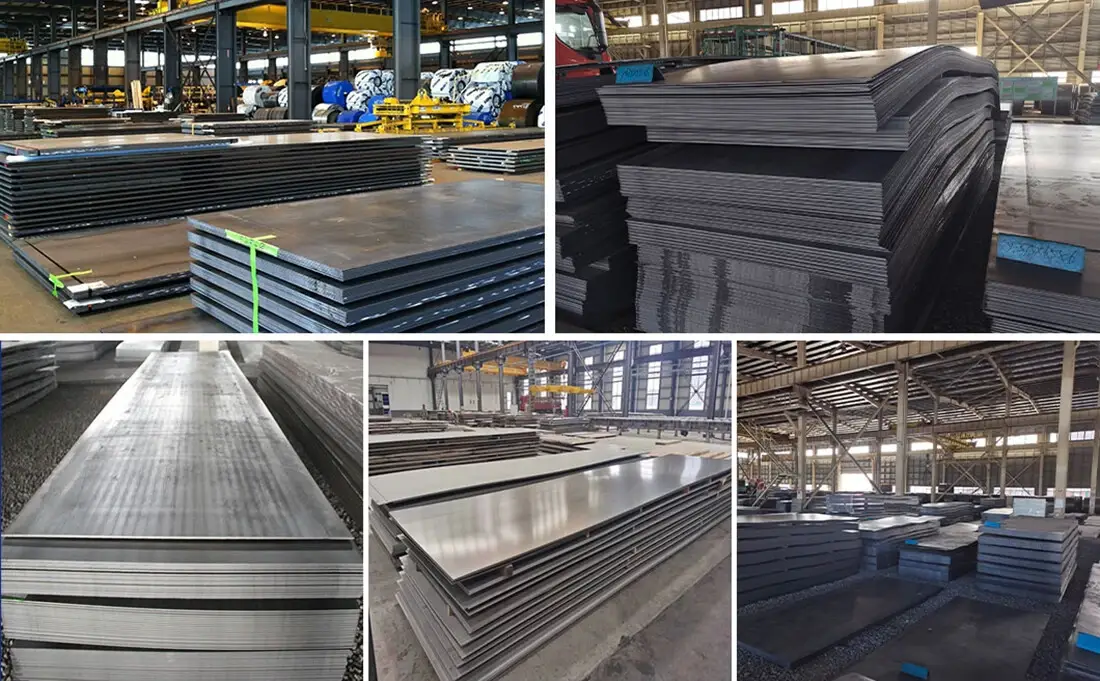

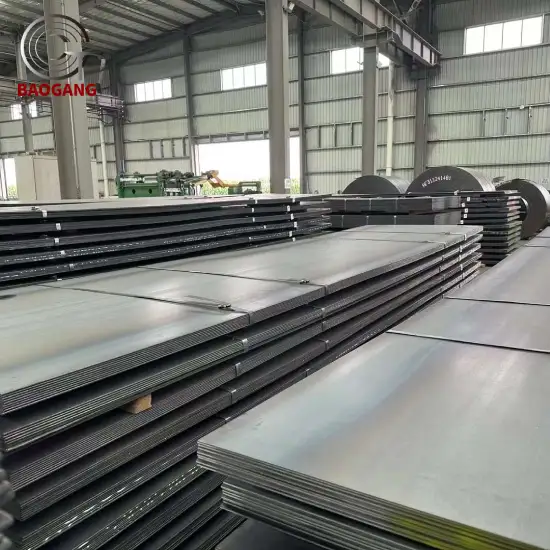

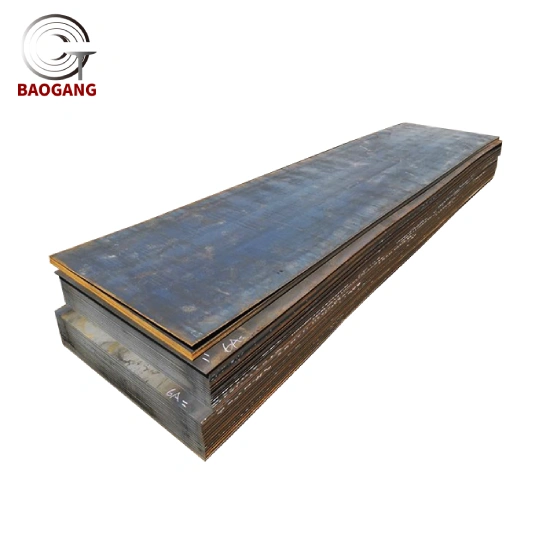

Product Display
Application

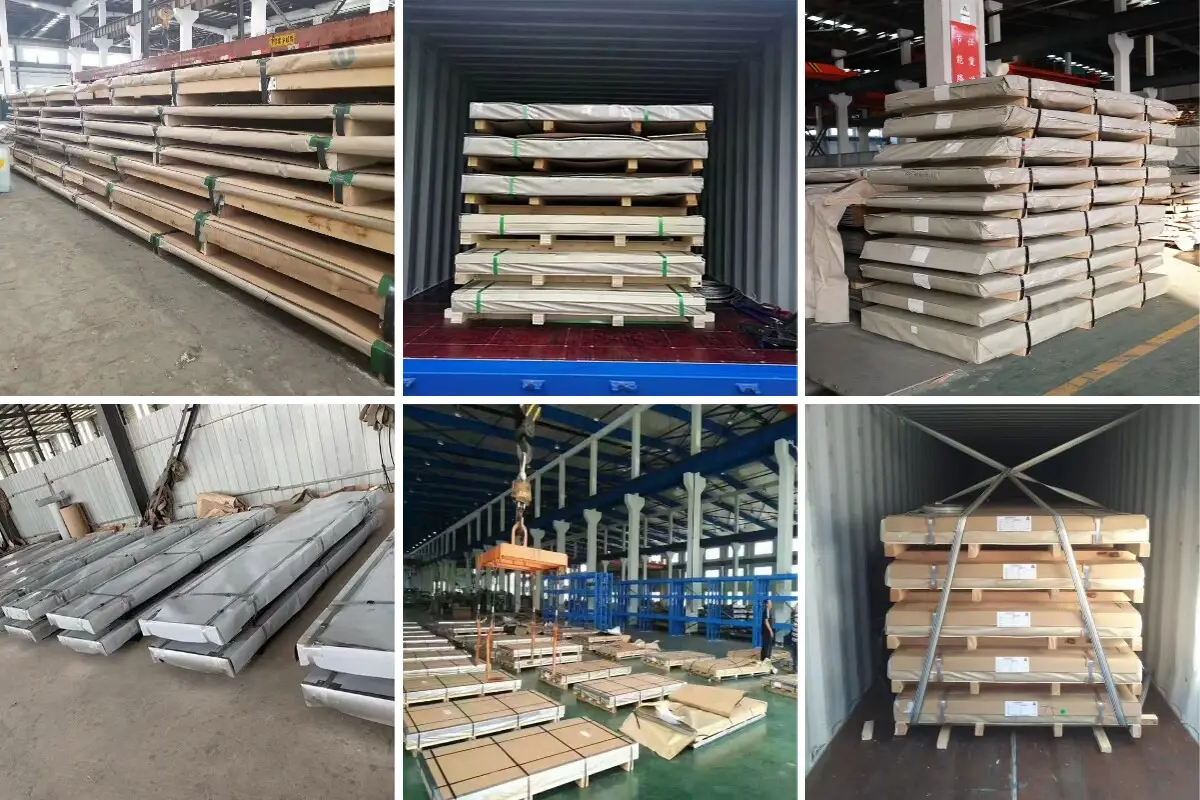

Package
Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
