AISI/SAE 8620 Carbon Steel Bar
8620 steel bar is made of a kind of low alloy steel mainly composed of iron, carbon, silicon, manganese, phosphorus, sulfur, chromium, nickel and other elements. It has good hardenability and weldability, and can obtain excellent mechanical properties through heat treatment.
Product Parameters
| AISI/SAE 8620 Carbon Steel Bar |
| 8620 steel bar is made of a kind of low alloy steel mainly composed of iron, carbon, silicon, manganese, phosphorus, sulfur, chromium, nickel and other elements. It has good hardenability and weldability, and can obtain excellent mechanical properties through heat treatment. |
| Product Parameters | ||||
| Product Name | AISI/SAE 8620 Carbon Steel Bar | |||
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. | |||
| Common Round Bar Specifications |
3.0-50.8 mm, Over 50.8-300mm | |||
| Flat Steel Common Specifications |
6.35×12.7mm, 6.35×25.4mm, 12.7×25.4mm | |||
| Hexagon Bar Common Specifications |
AF5.8mm-17mm | |||
| Square Bar Common Specifications |
AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm | |||
| Length | 1-6meters, Size Accept Custom | |||
| Diameter(mm) | Hot Rolling Round Bar |
25-600 | Cold Rolling Square Bar |
6-50.8 |
| Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar |
9.5-65 | |
| Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 | |
| Surface Process | Bright, Polished, Black | |||
| Other Services |
Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. |
|||
| Chemical Composition | |||||||
| C | Mn | Si | Mo | Cr | Ni | S | P |
| 0.18-0.23 | 0.70-0.90 | 0.15-0.35 | 0.15-0.25 | 0.40-0.60 | 0.40-0.70 | 0.035 | 0.04 |
| Mechanical Properties | |||||
| Grade | Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation in 100-150 mm(%) |
Reduction in Area |
Hardness |
| SAE 8620 | ≥ 380 | ≥ 210 | ≥ 25 | ≥ 50 | ≤ 111HB |
| Scope of Application |
| AISI 8620 can be used in a variety of medium strength applications, such as camshafts, fasteners, gears and chains/chain pins. |

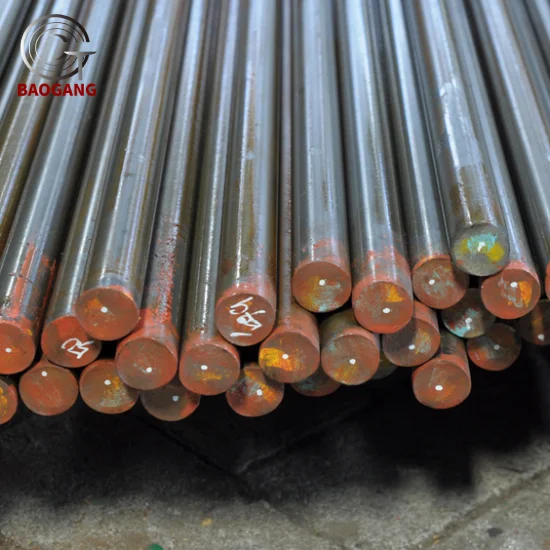

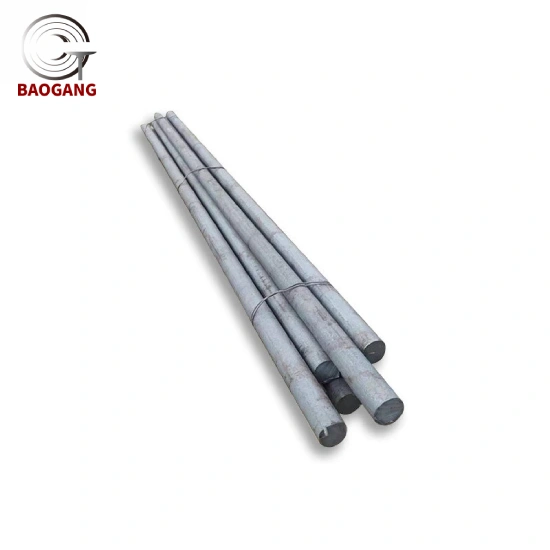

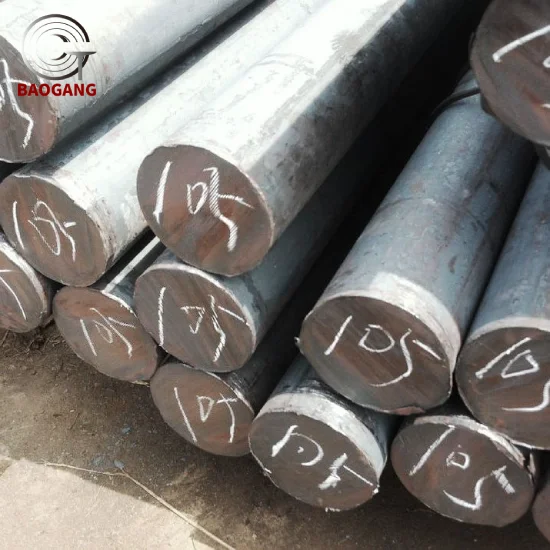

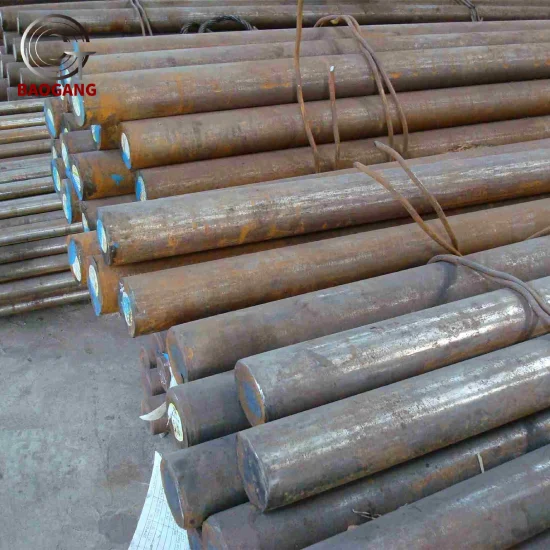

Product Display
Application
Package
Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
