A573/A573M Carbon Steel Plate
ASTM A573/A573M grades include 58, 65 and 70. Steel plates are suitable for structural carbon-manganese-silicon steel plates with three tensile strength ranges. ASTM A573/A573M steel plates are mainly used to improve notch toughness at room temperature.
Product Parameters
| A573/A573M Carbon Steel Plate Description |
| A573/A573M steel plate has good impact resistance, small temperature deformation, good welding performance, micro-alloying, high purity, low carbon equivalent and strong resistance to hydrogen sulfur. Such plates are commonly used in petroleum, chemical industry, power stations, boilers and other industries to make reactors, heat exchangers, separators, spherical tanks, oil and gas tanks, liquefied gas tanks, nuclear reactor pressure shells, boiler drums, liquefied petroleum gas bottles, turbine casings and other equipment and components. |
| Product Parameters | |
| Product Name | A573/A573M Carbon Steel Plate |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
| Chemical Composition |
|||||
| A573 | C max |
Mn | P max |
S max |
Si |
| Grade58 | 0.23 | 0.60-0.90 | 0.035 | 0.04 | 0.10-0.35 |
| Grade65 | 0.24-0.26 | 0.85-1.20 | 0.035 | 0.04 | 0.15-0.40 |
| Grade70 | 0.27-0.28 | 0.85-1.20 | 0.035 | 0.04 | 0.15-0.40 |
| Mechanical Properties |
||||
| A573 | Tensile Strength | Yield Strength |
Elongation % | |
| Grade58 | 58 | 400-490 Mpa | 220 Mpa | 21 |
| Grade65 | 65 | 450-530 Mpa | 240 Mpa | 20 |
| Grade70 | 70 | 485-620 Mpa | 290 Mpa | 28 |
| Physical Performance |
||
| Physical Performance | Metric | Imperial |
| Density | 7.85g/cm3 | 0.282 lb/in³ |
| Scope of Application |
| ASTM A573 grade steel plate for welded bridge structures. |

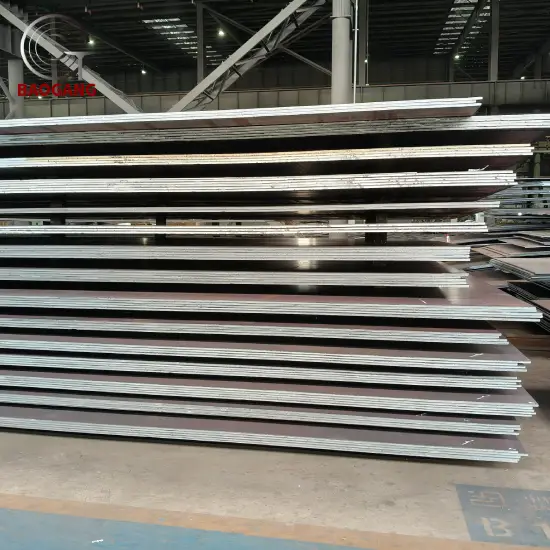

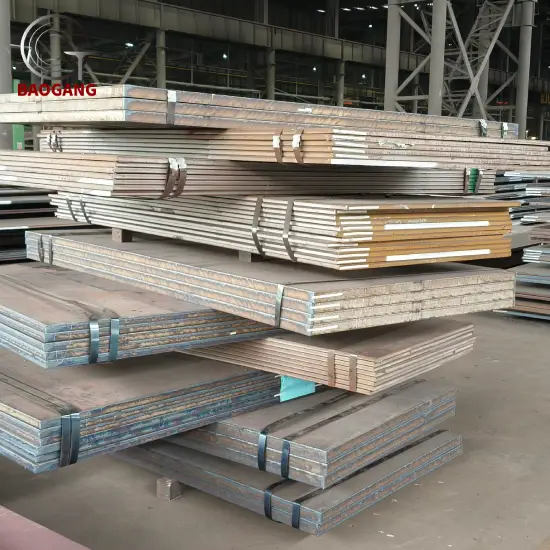

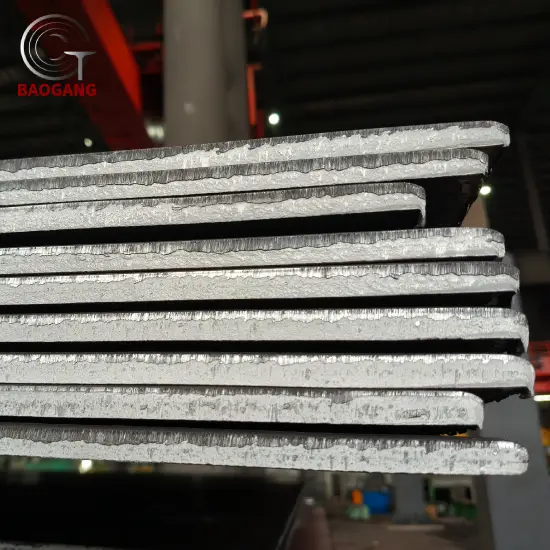

Product Display
Application
Package
Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
