A36 Round Steel Bar
A36 is a low-carbon steel containing manganese, phosphorus, sulfur, silicon and copper. A36 has good weldability and high yield strength. A36 carbon steel bar is commonly used as a variety of structural steel parts.
Product Parameters
| A36 Round Steel Bar Description |
| A36 is a carbon structural steel whose chemical composition and mechanical properties strictly conform to American ASTM standards. A36 steel bar mainly consists of iron, carbon, silicon, manganese, phosphorus, sulfur and other elements. Iron constitutes more than 99% of the entire chemical composition. Its carbon content proportion is relatively high, around 0.2%, ensuring that the steel has a certain hardness and toughness. The addition of silicon, manganese and other elements enhances the strength and toughness of steel. Phosphorus and sulfur are low so that the steel bar has good welding performance and corrosion resistance. A36 steel bar is used for welded, bolted or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its lowest yield point, A36 can be used to design lighter-weight structures and equipment, and provide good weldability. |
| Product Parameters | ||||
| Product Name | A36 Round Steel Bar | |||
| Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. | |||
| Common Round Bar Specifications | 3.0-50.8 mm, Over 50.8-300mm | |||
| Flat Steel Common Specifications | 6.35×12.7mm, 6.35×25.4mm, 12.7×25.4mm | |||
| Hexagon Bar Common Specifications | AF5.8mm-17mm | |||
| Square Bar Common Specifications | AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm | |||
| Length | 1-6meters, Size Accept Custom | |||
| Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar | 6-50.8 |
| Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar | 9.5-65 | |
| Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 | |
| Surface Process | Bright, Polished, Black | |||
| Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. | |||
| Chemical Composition | ||||||
| C | Cu | Fe | Mn | P | Si | S |
| 0.25～0.290 | 0.2 | 98 | 1.03 | 0.04 | 0.28 | 0.05 |
| Physical Performance |
||
| Physical Performance | Metric | Imperial |
| Density | 7.85 g/cm3 | 0.284 lb/in3 |
| Scope of Application |
| Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs. |
| Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc. |
| Equivalent Material | |||||||
| National Standard GB |
European Standard EN |
American Standard ASTM |
German Standard DIN,WNr | Japanese Standard JIS |
French Standard AFNOR | British Standard BS |
Canada HG |
| Q235B | S235JR | A283C | St37-2 | SM400A | E24-2 | 40A/40B | 230G |
| Italy UNI | India IS | Switzerland SS | Australia ONORM | Norway NS | Spain UNE | International Standards ISO | Portugal NP |
| Fe360B | IS2062 | 1311/1312 | RSt360B | NS12123 | AE235B-FN | E235B/Fe360B | FE360-B |

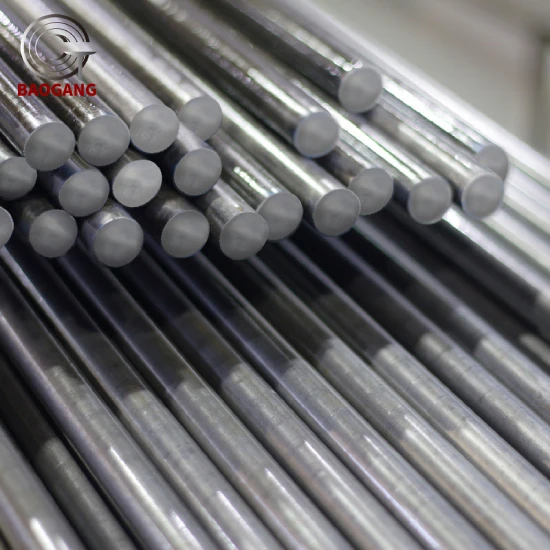

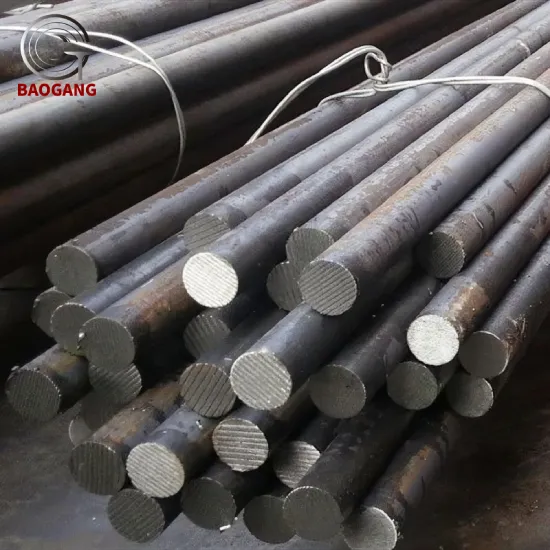

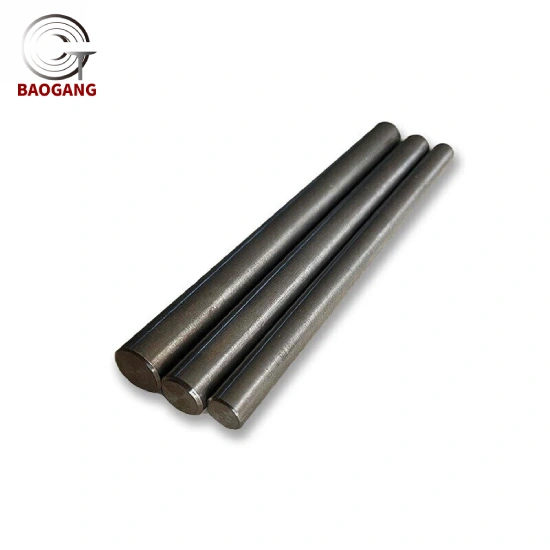

Product Display
Application
Package

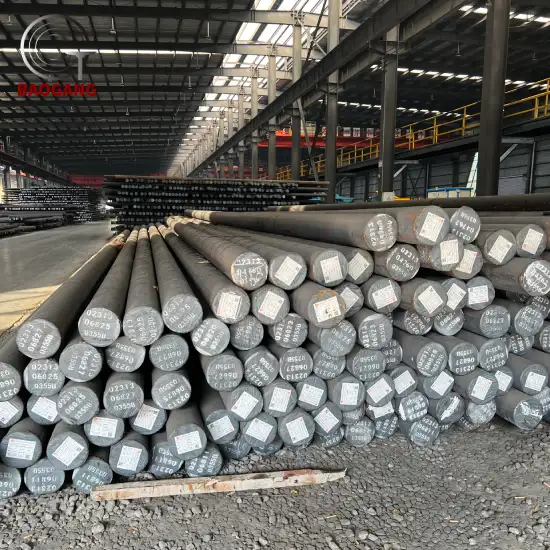

Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
