1045 Cold Rolled Steel Coil
1045 cold rolled steel coil is a medium carbon structural steel with good hot and cold workability and good mechanical properties. It is widely used in the industrial machinery manufacturing industry.
Product Parameters
| 1045 Cold Rolled Steel Coil |
| AISI 1045 is a medium carbon steel designed to be able to function in areas requiring greater strength and hardness. This steel possesses excellent size accuracy, concentricity, and straightness which together minimize wear in high speed applications. AISI 1045 can be formed into turned, ground and polished coils that can be machined unsymmetrically with limited distortion. They are often used in the production of gears, shafts, axles, bolts, studs and machine parts. |
| Product Parameters |
|
| Product Name |
1045 Cold Rolled Steel Coil |
| Production Process |
Hot Rolling, Cold Rolling |
| Material Standards |
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions |
Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process |
Ordinary, Wire Drawing, Laminated Film |
| Chemical Composition |
|
| Element | Content (%) |
| Carbon, C |
0.43-0.50 |
| Manganese, Mn | 0.60-0.90 |
| Sulfur, S | 0.05 (max) |
| Phosphorous, P | 0.04 (max) |
| Iron, Fe | Balance |
| Mechanical Properties |
||
| Properties | Metric | Imperial |
| Tensile strength |
585 MPa | 84800 psi |
| Yield strength | 450 MPa |
65300 psi |
| Modulus of elasticity | 200 GPa |
29000 ksi |
| Shear modulus (typical for steel) | 80 GPa |
11600 ksi |
| Poisson’s ratio | 0.29 | 0.29 |
| Elongation at break (in 50 mm) | 12% | 12% |
| Hardness, Brinell | 163 | 163 |
| Hardness, Knoop (converted from Brinell hardness) | 184 | 184 |
| Hardness, Rockwell B (converted from Brinell hardness) | 84 | 84 |
| Hardness, Vickers (converted from Brinell hardness) | 170 | 170 |
| Scope of Application |
| The following are the application areas of AISI 1045 carbon steel: |
| ● Bolts |
| ● Studs |
| ● Gears |
| ● Axles |
| ● Shafts |
| ● Machine parts. |

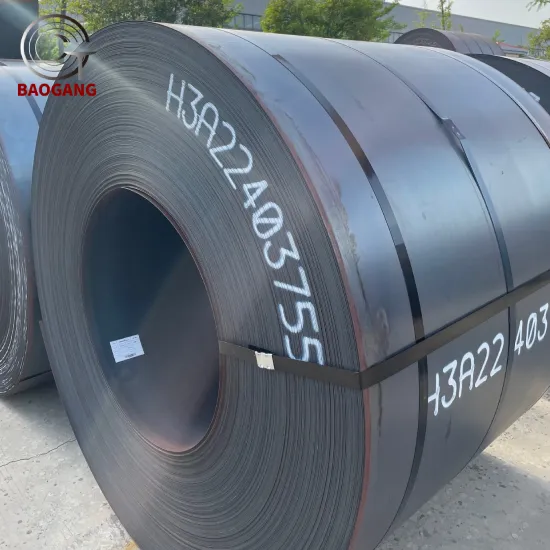

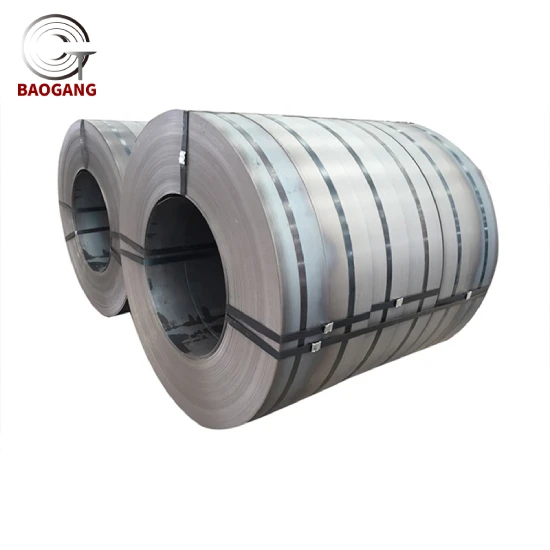

Product Display
Application
Package

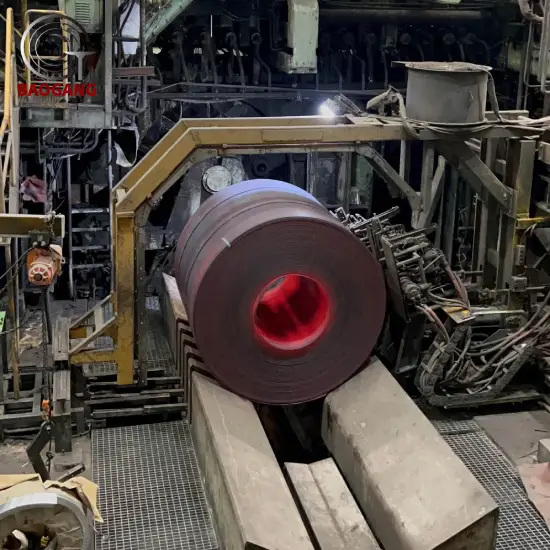

Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
