1018 Cold Rolled Steel Coil
AISI 1018 carbon steel is a free machining grade that is the most commonly available grade around the world. Although its mechanical properties are not very, it still can be easily formed, machined, welded and fabricated.
Product Parameters
| 1018 Cold Rolled Steel Coil |
| 1018 cold rolled steel coil is made of a general-purpose, low-carbon steel with good case hardening qualities. It is especially suited to cold forming and bending operations. 1018 steel is suitable for parts that require cold forming such as crimping, swaging, or bending. 1018 steel is mild steel with medium-low carbon content. AISI 1018 carbon steel is a free machining grade that is the most commonly available grade around the world. Although its mechanical properties are not very unique, it still can be easily formed, machined, welded and fabricated. |
| Product Parameters |
|
| Product Name | 1018 Cold Rolled Steel Coil |
| Production Process |
Hot Rolling, Cold Rolling |
| Material Standards |
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions |
Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process |
Ordinary, Wire Drawing, Laminated Film |
| Chemical Composition |
|
| Element | Content (%) |
| Manganese, Mn |
0.60-0.90 |
| Carbon, C | 0.15-0.20 |
| Sulfur, S | 0.05 (max) |
| Phosphorous, P | 0.04 (max) |
| Iron, Fe | Balance |
| Mechanical Properties |
||
| Properties | Metric | Imperial |
| Tensile strength |
440 MPa | 63800 psi |
| Yield strength | 370 MPa |
53700 psi |
| Modulus of elasticity | 205 GPa |
29700 ksi |
| Shear modulus (typical for steel) | 80 GPa |
11600 ksi |
| Poisson’s ratio | 0.29 | 0.29 |
| Elongation at break (in 50 mm) | 15% | 15% |
| Hardness, Brinell | 126 | 126 |
| Hardness, Knoop (converted from Brinell hardness) | 145 | 145 |
| Hardness, Rockwell B (converted from Brinell hardness) | 71 | 71 |
| Hardness, Vickers (converted from Brinell hardness) | 131 | 131 |
| Machinability (based on AISI 1212 steel. as 100 machinability) | 70 | 70 |
| Scope of Application |
| AISI 1018 carbon steel is commonly used in high volume screw machine parts applications. The other applications of this alloy are as follows: |
| ● Shafts |
| ● Spindles |
| ● Pins |
| ● Rods |
| ● Sprocket assemblies. |

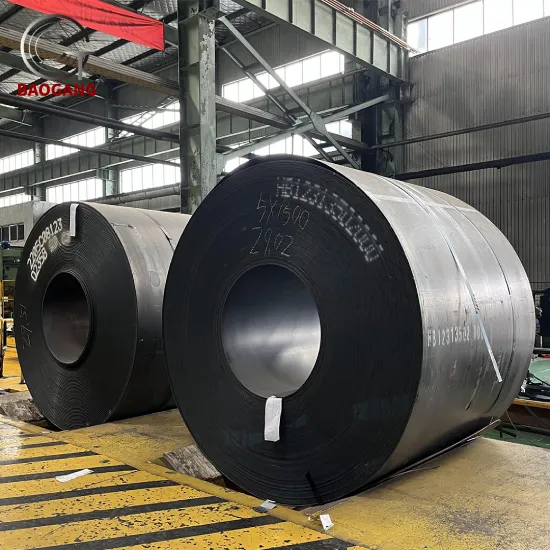

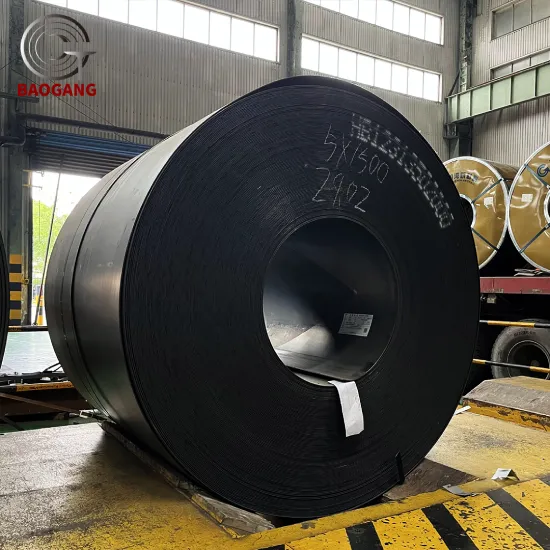

Product Display
Application
Package
Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
