1008 Cold Rolled Steel Coil
1008 carbon steel coil is primarily used in extruded, cold headed, cold upset, and cold pressed parts and forms. 1008 in the cold rolled condition is used for exposed or unexposed parts where bending, moderate drawing, forming and welding may be involved.
Product Parameters
| 1008 Cold Rolled Steel Coil |
| 1008 cold rolled steel coil contains about 1.2% manganese and 0.4% silicon. There are also nickel, aluminium, chromium, copper and molybdenum present in small quantities in the carbon steels. AISI 1008 carbon steel coil has excellent weldability, which includes projection, butt, spot and fusion, and brazeability. 1008 cold rolled steel coil is mainly used in automobile, printed metal pail, building, building materials, and bicycle, etc. Besides, it is the best material to manufacture organic coated strip. |
| Product Parameters |
|
| Product Name |
1008 Cold Rolled Steel Coil |
| Production Process |
Hot Rolling, Cold Rolling |
| Material Standards |
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions |
Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process |
Ordinary, Wire Drawing, Laminated Film |
| Chemical Composition |
|
| Element | Content (%) |
| Iron, Fe | 99.31-99.7 % |
| Manganese, Mn | 0.30-0.50 % |
| Carbon, C | 0.10% |
| Sulfur, S | 0.05% |
| Phosphorous, P | 0.04% |
| Mechanical Properties |
||
| Properties | Metric | Imperial |
| Tensile strength |
340 MPa | 49300 psi |
| Yield strength (depending on temper) | 285 MPa |
41300 psi |
| Elastic modulus | 190-210 Gpa |
27557-30458 ksi |
| Bulk modulus (typical for steel) | 200 GPa |
29000 ksi |
| Shear modulus (typical for steel) | 80.0 GPa |
11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 20% | 20% |
| Reduction of area | 45% | 45% |
| Hardness, Brinell | 95 | 95 |
| Hardness, Knoop (converted from Brinell hardness) | 113 | 113 |
| Hardness, Rockwell B (converted from Brinell hardness) | 55 | 55 |
| Hardness, Vickers (converted from Brinell hardness) | 98 | 98 |
| Machinability (based on AISI 1212 steel as 100 machinability) | 55 | 55 |
| The machinability of group I bar, rod, and wire products can be improved by cold drawing) |
||
| Scope of Application |
| AISI 1008 carbon steel is primarily used in extruded, cold headed, cold upset, and cold pressed parts and forms. |

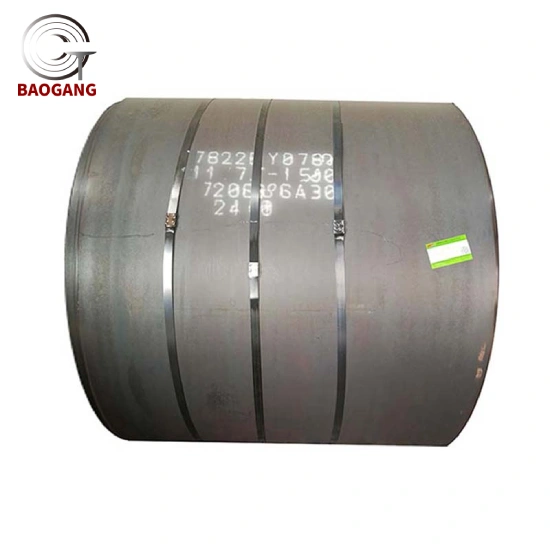

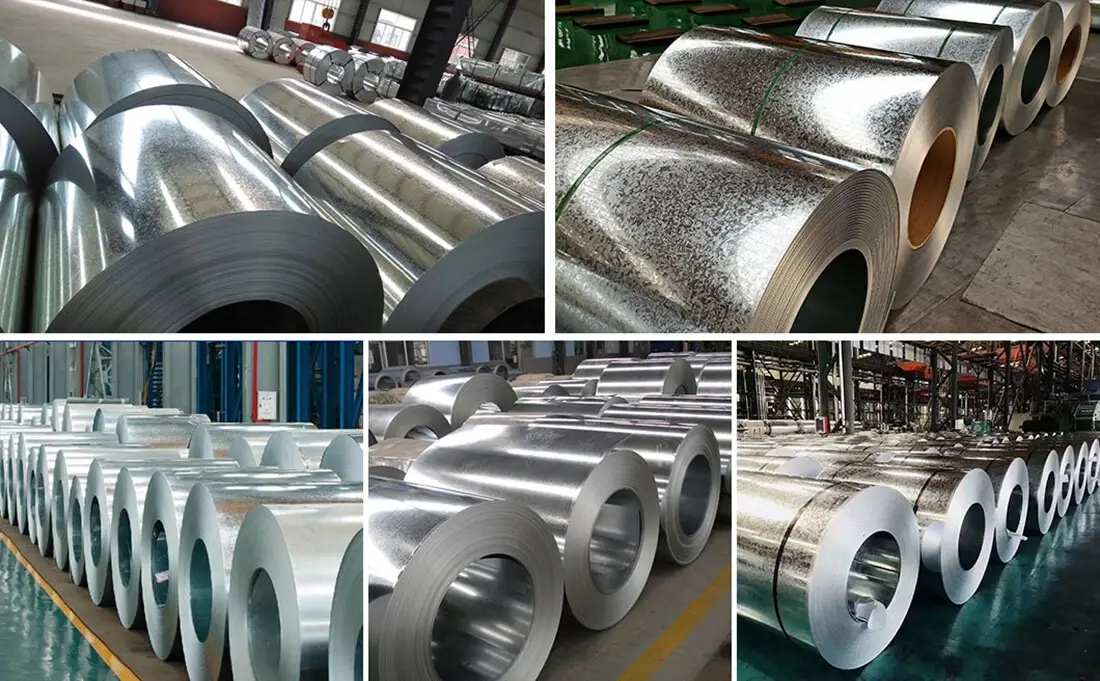

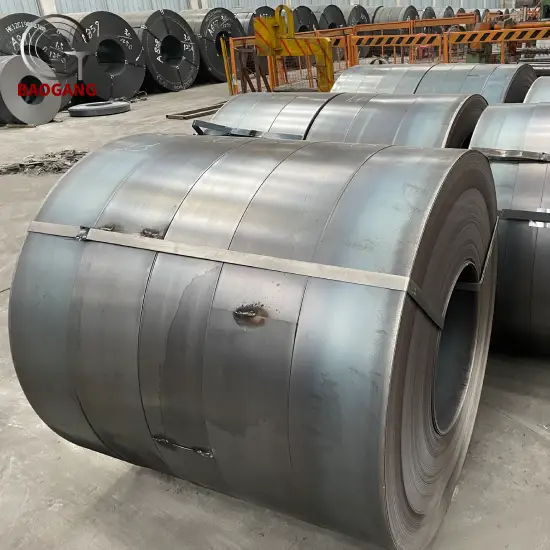

Product Display
Application

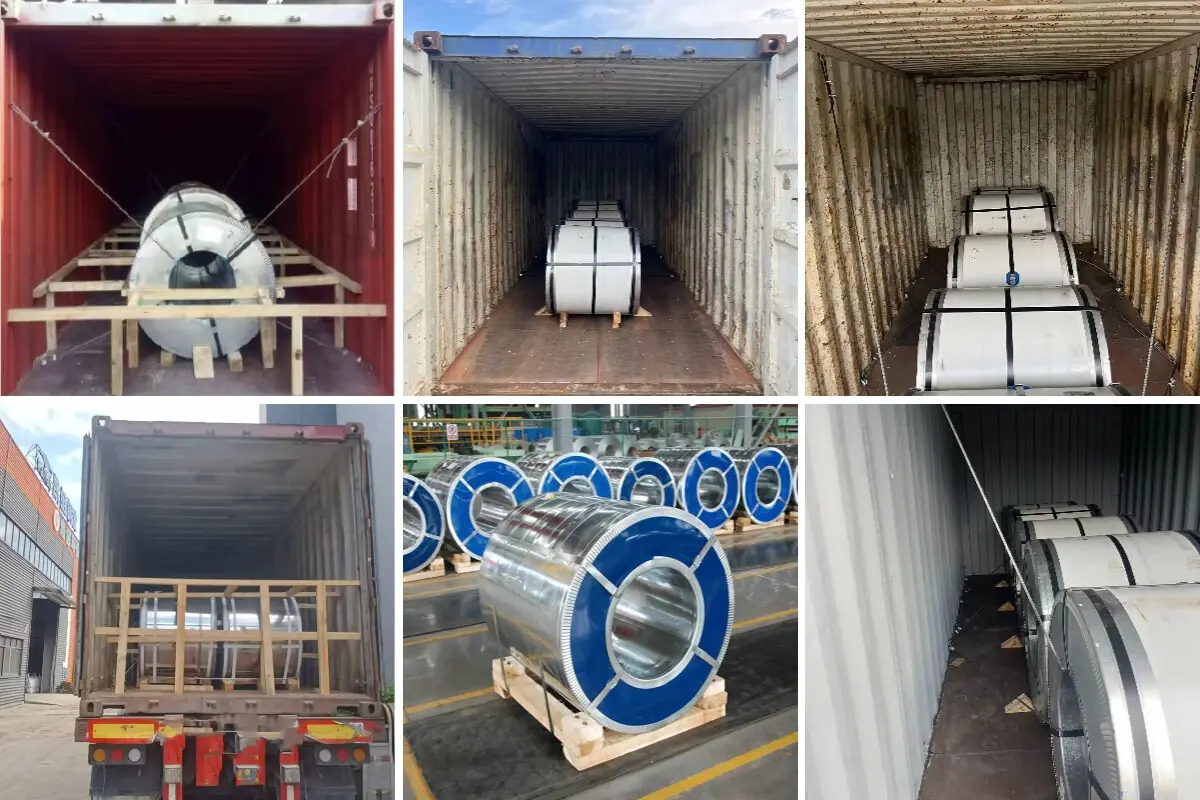

Package

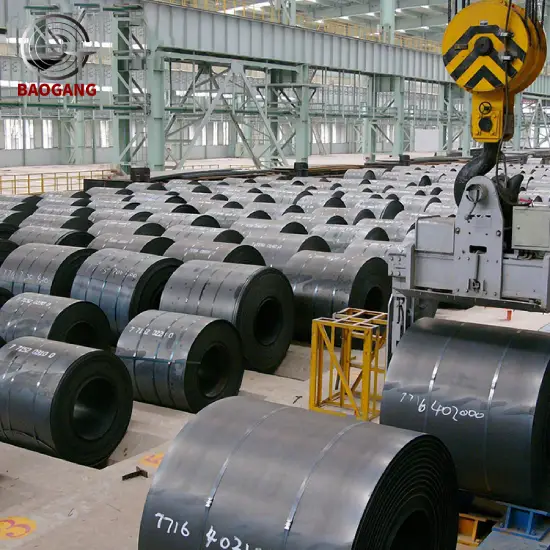

Factory Display
FAQ
Q: Are You Manufacture or Trade Company?
A: We are the professional manufacturer of steel products located in China. Welcome to contact us and visit our factory before you place orders.
Q: How do you guarantee the quality?
A: We can send free samples to you, we can accept third-party testing.
We also have test certificate, every batch goods will be testing before shipment, and the testing report will delivery to you with your goods.
Q: Can I get free samples?
A: Of course you can. We can produce according to your samples or technical drawings. Contact us by whatsapp or email to get free samples and you will get the sample after 3-7 working days.
